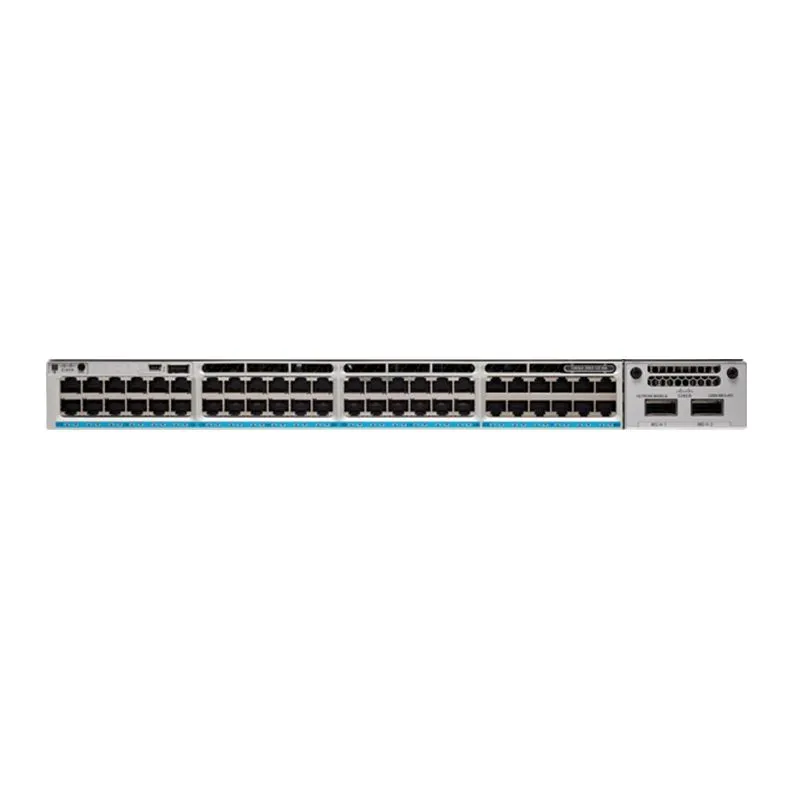

Cisco catalyst 9300 48 port UPOE Switch C9300-48U-A
Cisco catalyst 9300 48 port UPOE Switch C9300-48U-A
  • Cisco catalyst 9300 48 port UPOE Switch C9300-48U-A
  • Cisco catalyst 9300 48 port UPOE Switch C9300-48U-A

C9300-48U-A

C9300-48U-A is the Catalyst 9300 48-port UPOE Switch, with Network Advantage software.

Description

C9300-48U-A Overview


The Cisco® Catalyst® 9300 Series Switches are Cisco’s lead stackable enterprise

switching platform built for security, IoT, mobility, and cloud. C9300-48U-A is

48-port UPOE, Network Advantage Switch of 9300 series. Catalyst 9300 Series are

the next generation of the industry’s most widely deployed switching platform.

At 480 Gbps, they are the industry’s highest-density stacking bandwidth solution

with the most flexible uplink architecture. The Catalyst 9300 Series is the first

optimized platform for high-density 802.11ac Wave2. It sets new maximums for

network scale. These switches are also ready for the future, with an x86 CPU

architecture and more memory, enabling them to host containers and run

third-party applications and scripts natively within the switch.


C9300-48U-A Specification

C9300-48U-A Specification

Part Number

C9300-48U-A

Product Description

Catalyst 9300 48-port UPOE, Network Advantage

Total 10/100/1000 or

Multigigabit copper ports

48 UPOE

Default AC power supply

1100W AC

Available PoE power

822W

Cisco StackWise-480

Yes

Cisco StackPower

Yes

Default power supply

PWR-C1-1100WAC-P/2

Switching capacity

256 Gbps on 48-port Gigabit Ethernet model

Stacking bandwidth

480 Gbps

Total number of MAC addresses

32,000

Total number of IPv4 routes

(ARP plus learned routes)

32,000 (24,000 direct routes and 8000 indirect routes)

IPv4 routing entries

32,000

IPv6 routing entries

16,000

Multicast routing scale

8000

QoS scale entries

5120

ACL scale entries

5120

Packet buffer per SKU

16 MB buffer for 24- or 48-port Gigabit Ethernet models

FNF entries

64,000 flow on 24- and 48-port Gigabit Ethernet models

DRAM

8 GB

Flash

16 GB

VLAN IDs

4000

Total Switched Virtual

Interfaces (SVIs)

2000

Jumbo frames

9198 bytes

Total routed ports per 9300

Series stack

208

Wireless bandwidth per switch

Up to 48 Gbps on 48-port Gigabit Ethernet model

Forwarding rate

154.76 Mpps

Dimensions (H x W x D)

1.73 x 17.5 x 17.5 Inches

Weight

16.33 Pounds

Mean time between failures

(hours)

299,000

Safety certifications

●  UL 60950-1

●  CAN/CSA-C222.2 No. 60950-1

●  EN 60950-1

●  IEC 60950-1

●  AS/NZS 60950.1

●  IEEE 802.3

Electromagnetic emissions

certifications

●  47 CFR Part 15

●  CISPR22 Class A

●  EN 300 386 V1.6.1

●  EN 55022 Class A

●  EN 55032 Class A

●  CISPR 32 Class A

●  EN61000-3-2

●  EN61000-3-3

●  ICES-003 Class A

●  TCVN 7189 Class A

●  V-3 Class A

●  CISPR24

●  EN 300 386

●  EN55024

●  TCVN 7317

Environmental

Reduction of Hazardous Substances (ROHS) 5


The Accessories

Table 2 shows the recommended elements for the C9300-48U-A

Product number

                                   Description

   C9300-NM-4G

                    9300 Series 4x 1G Network Module

   C9300-NM-4G=

                    Catalyst 9300 4 x 1GE Network Module, spare

   C9300-NM-8X

                    9300 Series 8x 10G Network Module

   C9300-NM-8X=

                    Catalyst 9300 8 x 10GE Network Module, spare

   C9300-NM-2Q

                    9300 Series 2x 40G Network Module

   C9300-NM-2Q=

                    Catalyst 9300 2 x 40GE Network Module, spare

   C9300-NM-4M

                    9300 Series 4x Multigigabit Network Module

   C9300-NM-4M=

                   Catalyst 9300 4 x MGig Network Module, spare
