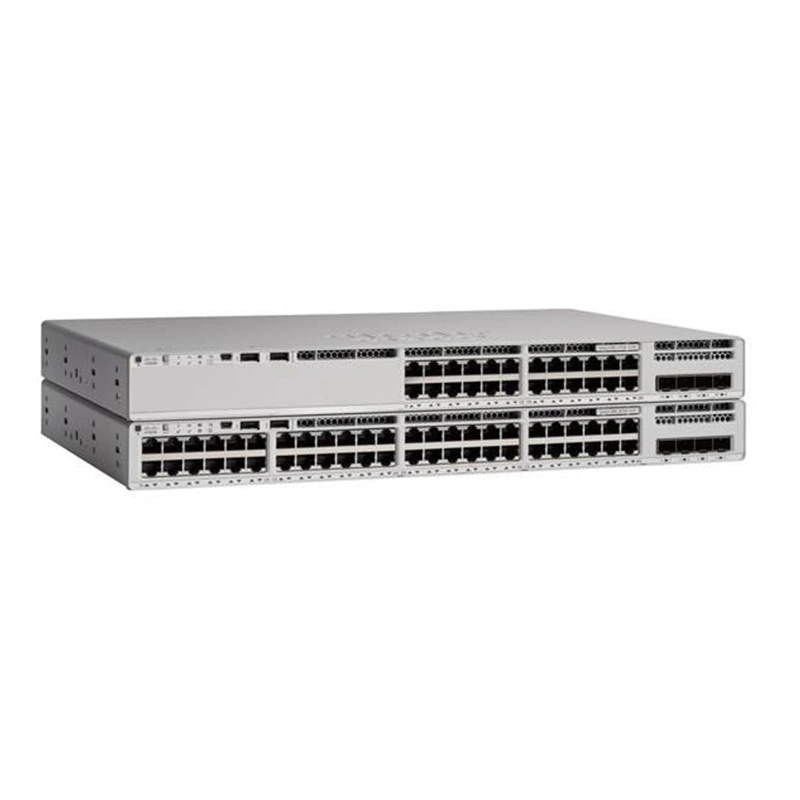

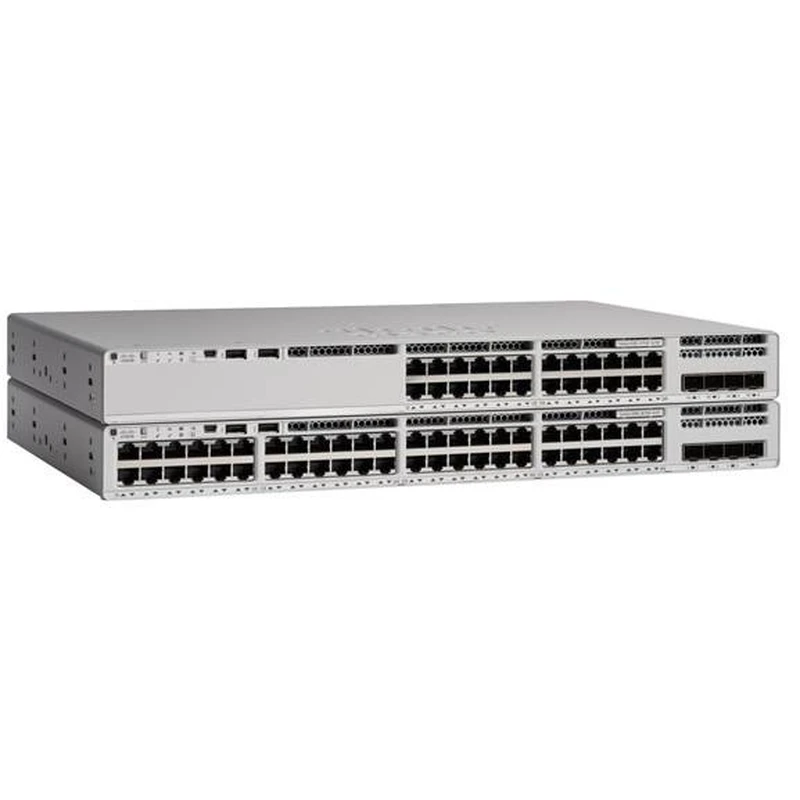

Cisco Switch Catalyst 9200L C9200L-48P-4G-A

C9200L-48P-4G-A Overview

C9200L-48P-4G-A is the Catalyst 9200L 48 ports full PoE+ 4x1G uplink Switch,

with Network Advantage software. Cisco® Catalyst® 9200 Series switches extend

the power of intent-based networking and Catalyst 9000 hardware and software

innovation to a broader set of deployments. With its family pedigree, Catalyst 9200

Series switches offer simplicity without compromise – it is secure, always on, and

IT simplified.

C9200L-48P-4G-A Specification

C9200L-48P-4G-A Specification
Downlinks total 10/100/1000 or PoE+ copper ports	48 ports full PoE+
Uplink configuration	4x 1G fixed uplinks
Default primary AC power supply	PWR-C5-1KWA
Fans	Fixed redundant
Software	Network Advantage
Chassis Dimensions	1.73 x 17.5 x 11.3 in 4.4 x 44.5 x 28.8 cm
Weight	4.35 Kg
Virtual Networks	1
Stacking bandwidth	80 Gbps
Total number of MAC addresses	16,000
Total number of IPv4 routes (ARP plus learned routes)	11,000 (8,000 direct routes and 3,000 indirect routes)
IPv4 routing entries	3,000
IPv6 routing entries	1,500
Multicast routing scale	1,000
QoS scale entries	1,000
ACL scale entries	1,500
Packet buffer per SKU	6 MB buffers for 24- or 48-port Gigabit Ethernet models
Flexible NetFlow (FNF) entries	16,000 flows on 24- and 48-port Gigabit Ethernet models
DRAM	2 GB
Flash	4 GB
VLAN IDs	1024
Total Switched Virtual Interfaces (SVIs)	512
Jumbo frames	9198 bytes
Wireless bandwidth per switch	N/A
Switching capacity	104 Gbps
Forwarding rate	154.76 Mpps
Mean time between failures (hours)	347,760

Product Details

Catalyst 9200 series provides these highlights:

● Up to 48 ports of full Power over Ethernet Plus (PoE+) capability

● Resiliency with Field-Replaceable Units (FRU) and redundant

power supply, fans, and modular uplinks

● Flexible downlink options with data or PoE+

● Operational efficiency with optional backplane stacking,

supporting stacking bandwidth up to 160 Gbps

● UADP 2.0 Mini with integrated CPU offers customers

optimized scale with better cost structure

● Enhanced security with AES-128 MACsec encryption,

policy-based segmentation, and trustworthy systems

● Layer 3 capabilities, including OSPF, EIGRP, ISIS, RIP,

and routed access

● Advanced network monitoring using Full Flexible NetFlow

● Cisco Software-Defined Access (SD-Access):

● Simplified operations and deployment with policy-based

automation from edge to cloud managed with Cisco

Identity Services Engine (ISE)

● Network assurance and improved resolution time through

Cisco DNA Center™

● Plug and Play (PnP) enabled: A simple, secure, unified,

and integrated offering to ease new branch or campus

device rollouts or updates to an existing network

● Cisco IOS XE: A Common Licensing based operating

system for the enterprise Cisco Catalyst 9000 product

● family with support for model-driven programmability

● and streaming telemetry

● ASIC with programmable pipeline and micro-engine

capabilities, along with template-based, configurable

allocation of Layer 2 and Layer 3 forwarding, Access

Control Lists (ACLs), and Quality of Service (QoS) entries

Table 2 shows the recommended supported products.

StackWise-80 and StackWise-160 Kit and cables
Product number	Product description
C9200-STACK-KIT=	C9200 Stack Kit Spare
C9200L-STACK-KIT=	C9200L Stack Kit Spare
STACK-T4-50CM	50CM Type 3 Stacking Cable
STACK-T4-1M	1M Type 3 Stacking Cable
STACK-T4-3M	3M Type 3 Stacking Cable
Power supplies
Product Number	Product Description
PWR-C5-125WAC/2=	125WAC power supply spare
