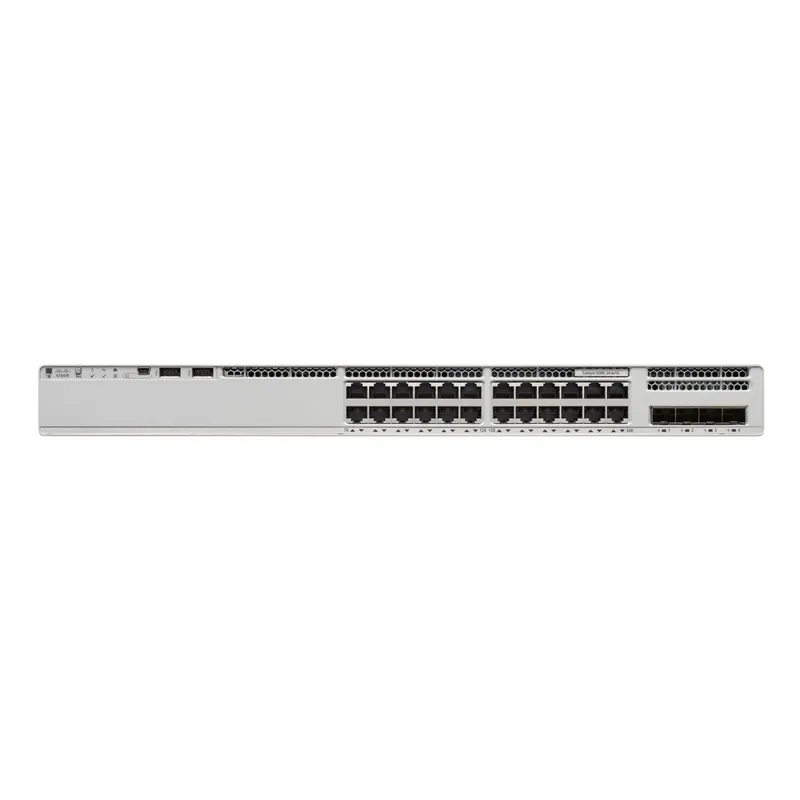

Cisco Switch Catalyst 9200L C9200L-24T-4X-E
Cisco Switch Catalyst 9200L C9200L-24T-4X-E
  • Cisco Switch Catalyst 9200L C9200L-24T-4X-E
  • Cisco Switch Catalyst 9200L C9200L-24T-4X-E

C9200L-24T-4X-E

C9200L-24T-4X-E is Cisco Switch Catalyst 9200L 24-port Data 4x10G uplink Switch,with Network Essentials.

Description

C9200L-24T-4X-E Overview


C9200L-24T-4X-E is the Catalyst 9200L 24 ports full Data 4x10G uplink Switch,

with Network Essentials. Cisco® Catalyst® 9200 Series switches extend

 the power of intent-based networking and Catalyst 9000 hardware and software

innovation to a broader set of deployments. With its family pedigree, Catalyst 9200

Series switches offer simplicity without compromise – it is secure, always on, and

 IT simplified.


C9200L-24T-4X-E Specification



C9200L-24T-4X-E Specification

Downlinks total 10/100/1000

or PoE+   copper ports

24 ports full data

Uplink configuration

4x 10G fixed uplinks

Default primary AC

power supply

PWR-C5-125WAC

Fans

Fixed redundant

Software

Network Essentials

Chassis Dimensions

1.73 x 17.5 x 11.3 in

4.4 x 44.5 x 28.8 cm

Weight

4.35 Kg

Virtual Networks

1

Stacking bandwidth

80 Gbps

Total number of MAC

addresses

16,000

Total number of IPv4 routes

(ARP plus   learned routes)

11,000 (8,000 direct routes and 3,000 indirect routes)

IPv4 routing entries

3,000

IPv6 routing entries

1,500

Multicast routing scale

1,000

QoS scale entries

1,000

ACL scale entries

1,500

Packet buffer per SKU

6 MB buffers for 24- or 48-port Gigabit Ethernet models

Flexible NetFlow (FNF)

entries

16,000 flows on 24- and 48-port Gigabit Ethernet models

DRAM

2 GB

Flash

4 GB

VLAN IDs

1024

Total Switched Virtual

Interfaces   (SVIs)

512

Jumbo frames

9198 bytes

Wireless bandwidth

per switch

N/A

Switching capacity

128Gbps

Forwarding rate

190.4 Mpps

Mean time between

failures (hours)

525,990



Product Details

 Catalyst 9200 series provides these highlights:

●   Up to 48 ports of full Power over Ethernet Plus (PoE+) capability

●   Resiliency with Field-Replaceable Units (FRU) and redundant

     power supply, fans, and modular uplinks

●   Flexible downlink options with data or PoE+

●   Operational efficiency with optional backplane stacking,

     supporting stacking bandwidth up to 160 Gbps

●   UADP 2.0 Mini with integrated CPU offers customers

     optimized scale with better cost structure

●   Enhanced security with AES-128 MACsec encryption,

     policy-based segmentation, and trustworthy systems

●   Layer 3 capabilities, including OSPF, EIGRP, ISIS, RIP,

     and routed access

●   Advanced network monitoring using Full Flexible NetFlow

●   Cisco Software-Defined Access (SD-Access):

●   Simplified operations and deployment with policy-based

     automation from edge to cloud managed with Cisco

     Identity Services Engine (ISE)

●   Network assurance and improved resolution time through

     Cisco DNA Center™

●   Plug and Play (PnP) enabled: A simple, secure, unified,

     and integrated offering to ease new branch or campus

     device rollouts or updates to an existing network

●   Cisco IOS XE: A Common Licensing based operating

     system for the enterprise Cisco Catalyst 9000 product

●   family with support for model-driven programmability

●   and streaming telemetry

●   ASIC with programmable pipeline and micro-engine

     capabilities, along with template-based, configurable

     allocation of Layer 2 and Layer 3 forwarding, Access

     Control Lists (ACLs), and Quality of Service (QoS) entries

Supported Products

Table 2 shows the recommended supported products.

StackWise-80 and StackWise-160 Kit and   cables

Product number

                                      Product description

C9200-STACK-KIT=

                                      C9200 Stack Kit Spare

C9200L-STACK-KIT=

                                      C9200L Stack Kit Spare

STACK-T4-50CM

                                      50CM Type 3 Stacking Cable

STACK-T4-1M

                                      1M Type 3 Stacking Cable

STACK-T4-3M

                                      3M Type 3 Stacking Cable

Power supplies

Product Number

                                      Product Description

PWR-C5-125WAC/2=

                                      125WAC power supply spare
