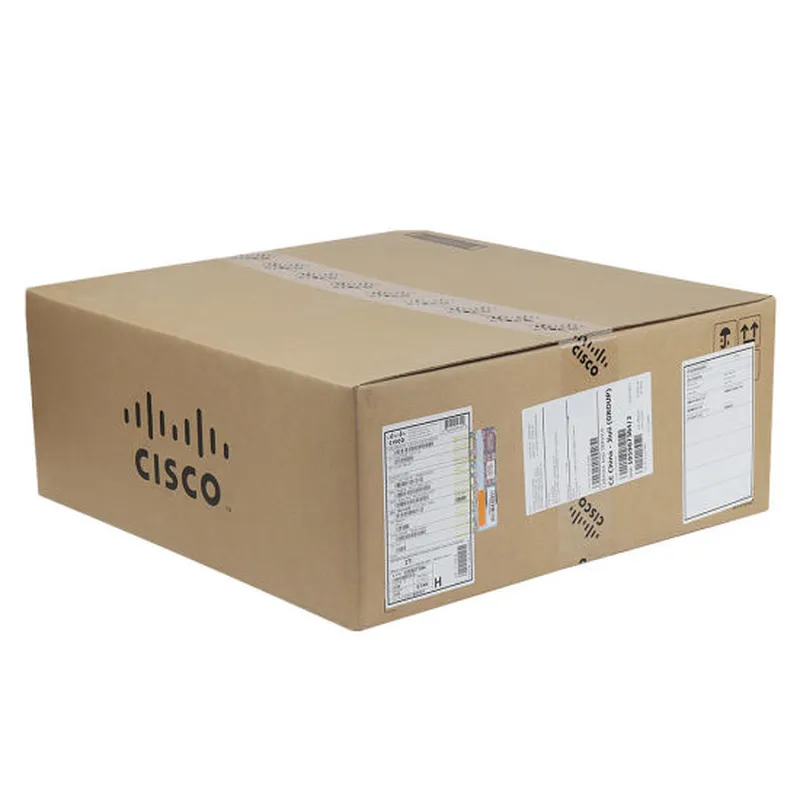

C9200L-24T-4G-A Overview
C9200L-24T-4G-A is the Catalyst 9200L 24 ports full Data 4x1G uplink Switch,
with Network Advantage software. Cisco® Catalyst® 9200 Series switches extend
the power of intent-based networking and Catalyst 9000 hardware and software
innovation to a broader set of deployments. With its family pedigree, Catalyst 9200
Series switches offer simplicity without compromise – it is secure, always on, and
IT simplified.
C9200L-24T-4G-A Specification
C9200L-24T-4G-A Specification | |
Downlinks total 10/100/1000 or PoE+ copper ports | 24 ports full data |
Uplink configuration | 4x 1G fixed uplinks |
Default primary AC power supply | PWR-C5-125WAC |
Fans | Fixed redundant |
Software | Network Advantage |
Chassis Dimensions | 1.73 x 17.5 x 11.3 in 4.4 x 44.5 x 28.8 cm |
Weight | 4.35 Kg |
Virtual Networks | 1 |
Stacking bandwidth | 80 Gbps |
Total number of MAC addresses | 16,000 |
Total number of IPv4 routes (ARP plus learned routes) | 11,000 (8,000 direct routes and 3,000 indirect routes) |
IPv4 routing entries | 3,000 |
IPv6 routing entries | 1,500 |
Multicast routing scale | 1,000 |
QoS scale entries | 1,000 |
ACL scale entries | 1,500 |
Packet buffer per SKU | 6 MB buffers for 24- or 48-port Gigabit Ethernet models |
Flexible NetFlow (FNF) entries | 16,000 flows on 24- and 48-port Gigabit Ethernet models |
DRAM | 2 GB |
Flash | 4 GB |
VLAN IDs | 1024 |
Total Switched Virtual Interfaces (SVIs) | 512 |
Jumbo frames | 9198 bytes |
Wireless bandwidth per switch | N/A |
Switching capacity | 56 Gbps |
Forwarding rate | 83.33 Mpps |
Mean time between failures (hours) | 531,030 |
Product Details
Catalyst 9200 series provides these highlights:
● Up to 48 ports of full Power over Ethernet Plus (PoE+) capability
● Resiliency with Field-Replaceable Units (FRU) and redundant
power supply, fans, and modular uplinks
● Flexible downlink options with data or PoE+
● Operational efficiency with optional backplane stacking,
supporting stacking bandwidth up to 160 Gbps
● UADP 2.0 Mini with integrated CPU offers customers
optimized scale with better cost structure
● Enhanced security with AES-128 MACsec encryption,
policy-based segmentation, and trustworthy systems
● Layer 3 capabilities, including OSPF, EIGRP, ISIS, RIP,
and routed access
● Advanced network monitoring using Full Flexible NetFlow
● Cisco Software-Defined Access (SD-Access):
● Simplified operations and deployment with policy-based
automation from edge to cloud managed with Cisco
Identity Services Engine (ISE)
● Network assurance and improved resolution time through
Cisco DNA Center™
● Plug and Play (PnP) enabled: A simple, secure, unified,
and integrated offering to ease new branch or campus
device rollouts or updates to an existing network
● Cisco IOS XE: A Common Licensing based operating
system for the enterprise Cisco Catalyst 9000 product
● family with support for model-driven programmability
● and streaming telemetry
● ASIC with programmable pipeline and micro-engine
capabilities, along with template-based, configurable
allocation of Layer 2 and Layer 3 forwarding, Access
Control Lists (ACLs), and Quality of Service (QoS) entries
Table 2 shows the recommended supported products.
StackWise-80 and StackWise-160 Kit and cables | |
Product number | Product description |
C9200 Stack Kit Spare | |
C9200L Stack Kit Spare | |
50CM Type 3 Stacking Cable | |
1M Type 3 Stacking Cable | |
3M Type 3 Stacking Cable | |
Power supplies | |
Product Number | Product Description |
125WAC power supply spare | |
