C9200-48P-A Overview

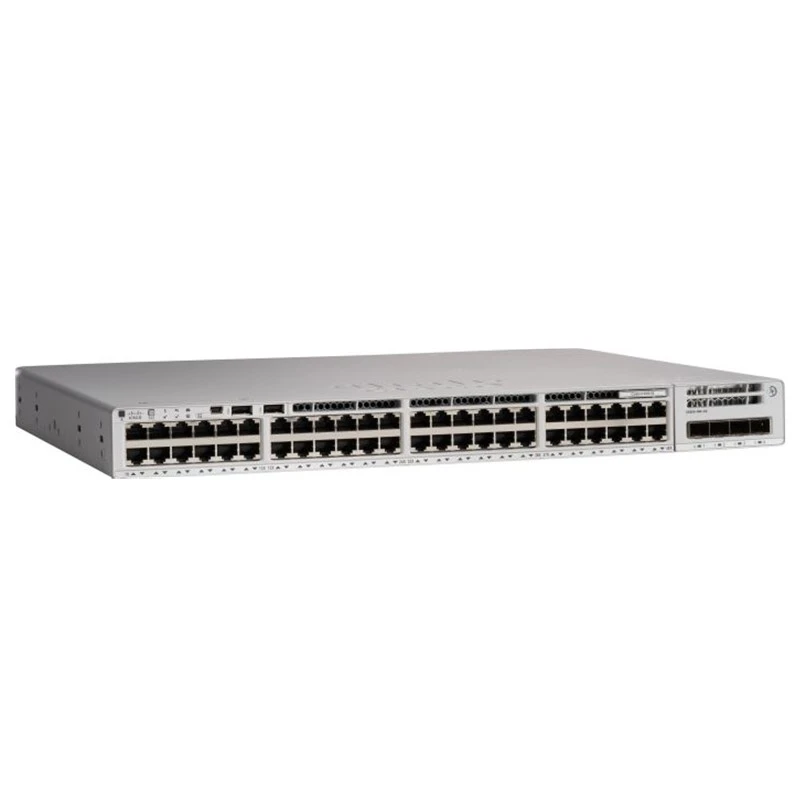

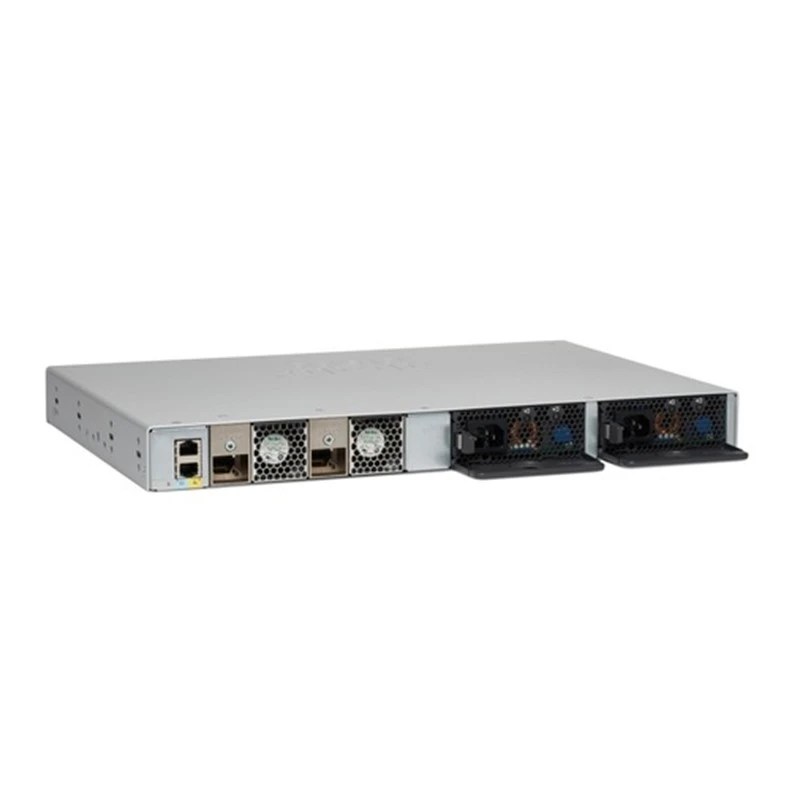

C9200-48P-A is the Catalyst 9200 48-port PoE+ Switch, with Network Advantage software.
Cisco® Catalyst® 9200 Series switches extend the power of intent-based networking and
Catalyst 9000 hardware and software innovation to a broader set of deployments. With its
family pedigree, Catalyst 9200 Series switches offer simplicity without compromise – it is
secure, always on, and IT simplified.
C9200-48P-A Specification
C9200-48P-A Specification | |
Downlinks total 10/100/1000 or PoE+ copper ports | 48 ports full PoE+ |
Uplink configuration | Modular uplink options |
Default primary AC power supply | PWR-C6-1KWAC |
Fans | FRU redundant |
Software | Network Advantage |
Chassis Dimensions | 1.73 x 17.5 x 13.8 in 4.4 x 44.5 x 35.0 cm |
Virtual Networks | 4 |
Stacking bandwidth | 160 Gbps |
Total number of MAC addresses | 32,000 |
Total number of IPv4 routes (ARP plus learned routes) | 14,000 (10,000 direct routes and 4,000 indirect routes) |
IPv4 routing entries | 4,000 |
IPv6 routing entries | 2,000 |
Multicast routing scale | 1,000 |
QoS scale entries | 1,000 |
ACL scale entries | 1,600 |
Packet buffer per SKU | 6 MB buffers for 24- or 48-port Gigabit Ethernet models |
Flexible NetFlow (FNF) entries | 16,000 flows on 24- and 48-port Gigabit Ethernet models |
DRAM | 4 GB |
Flash | 4 GB |
VLAN IDs | 4096 |
Total Switched Virtual Interfaces (SVIs) | 1000 |
Jumbo frames | 9198 bytes |
Wireless bandwidth per switch | Up to 48 Gbps on 24-port and 48-port Gigabit Ethernet model |
Switching capacity | 176 Gbps |
Forwarding rate | 261.9 Mpps |
Mean time between failures (hours) | 375,570 |
Product Details
Catalyst 9200 series provides these highlights:
● Up to 48 ports of full Power over Ethernet Plus (PoE+) capability
● Resiliency with Field-Replaceable Units (FRU) and redundant
power supply, fans, and modular uplinks
● Flexible downlink options with data or PoE+

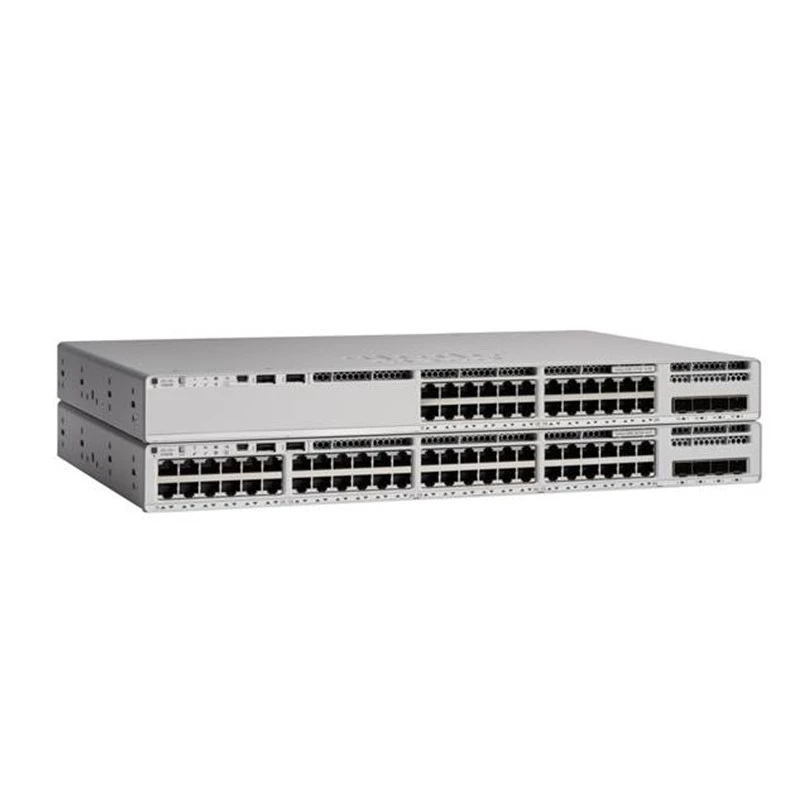

● Operational efficiency with optional backplane stacking,
supporting stacking bandwidth up to 160 Gbps
● UADP 2.0 Mini with integrated CPU offers customers
optimized scale with better cost structure
● Enhanced security with AES-128 MACsec encryption,
policy-based segmentation, and trustworthy systems
● Layer 3 capabilities, including OSPF, EIGRP, ISIS, RIP,
and routed access
● Advanced network monitoring using Full Flexible NetFlow
● Cisco Software-Defined Access (SD-Access):
● Simplified operations and deployment with policy-based
automation from edge to cloud managed with Cisco
Identity Services Engine (ISE)
● Network assurance and improved resolution time through
Cisco DNA Center™
● Plug and Play (PnP) enabled: A simple, secure, unified,
and integrated offering to ease new branch or campus
device rollouts or updates to an existing network
● Cisco IOS XE: A Common Licensing based operating
system for the enterprise Cisco Catalyst 9000 product
● family with support for model-driven programmability
● and streaming telemetry
● ASIC with programmable pipeline and micro-engine
capabilities, along with template-based, configurable
allocation of Layer 2 and Layer 3 forwarding, Access
Control Lists (ACLs), and Quality of Service (QoS) entries
Supported Products
Table 2 shows the recommended supported products.
Network modules | |
Product number | Product description |
Catalyst 9200 4 x 1GE Network Module | |
Catalyst 9200 4 x 10GE Network Module, spare | |
C9200-NM-BLANK | Catalyst 9200 BLANK Network Module |
StackWise-80 and StackWise-160 Kit and cables | |
Product number | Product description |
C9200 Stack Kit Spare | |
C9200L Stack Kit Spare | |
50CM Type 3 Stacking Cable | |
1M Type 3 Stacking Cable | |
3M Type 3 Stacking Cable | |
Power supplies | |
Product Number | Product Description |
1000WAC power supply spare | |
